1.The professional vacuum degassing system thoroughly eliminates air bubbles in clay, enhancing the density and plasticity of the clay body.
2.It realizes integrated automatic processing of stirring, kneading and extrusion, replacing inefficient manual kneading.
3.With durable structure, easy-to-clean design and adjustable operating speed, it fits various clay materials.
Application:

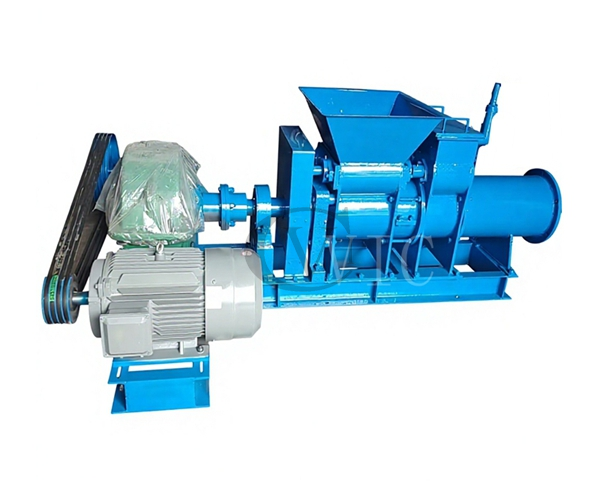

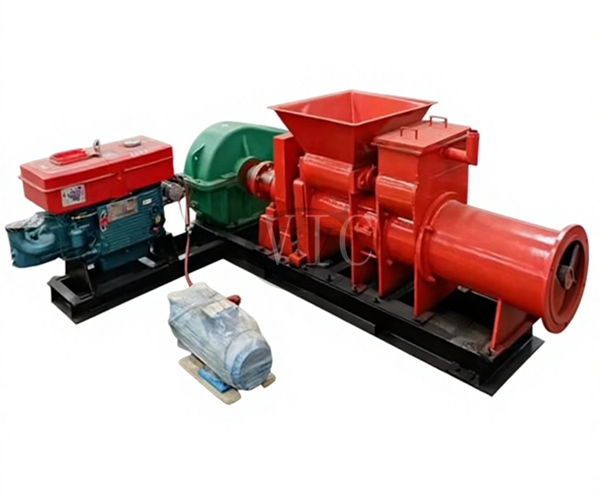

The vacuum pug mill is a core professional device widely used in ceramic and pottery industries for clay processing. It integrates stirring, kneading, vacuum degassing and extrusion molding into one automated process. Through its dual-shaft stirring structure and vacuum system, the machine thoroughly removes air bubbles inside raw clay, effectively homogenizing and compacting the clay body.
Main data:
| Model | VT-100 | VT-150 | VT-200 | VT-280 |
| Capacity | 200–300 kg/h | 600–1000 kg/h | 1000–2000 kg/h | 1200–2500 kg/h |
| Cylinder Diameter | 100 mm | 150 mm | 200 mm | 280mm |
| Mud Outlet Diameter | 20–70 mm (customizable) | 20–110 mm (customizable) | 20–110 mm (customizable) | 20–150 mm (customizable) |
| Main Motor Power | 2.2 kW | 3 kW | 4 kW | 22 kW |
| Vacuum Pump Power | 0.55 kW | 0.75 kW | 1.1 kW | 3 kW |
| Vacuum Degree | ≥0.09 MPa | ≥0.09 MPa | ≥0.09 MPa | ≥0.09 MPa |
| Applicable Clay Moisture | 18–24% | 18–24% | 18–24% | 18–24% |
| Voltage | 220V/380V, 50Hz | 380V, 50Hz | 380V, 50Hz | 380V, 50Hz |
