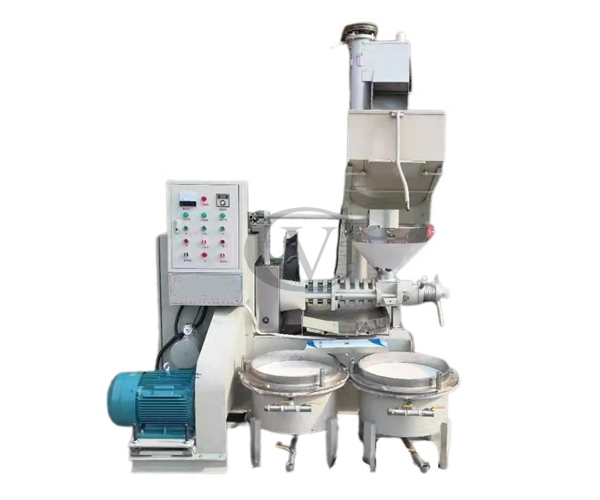

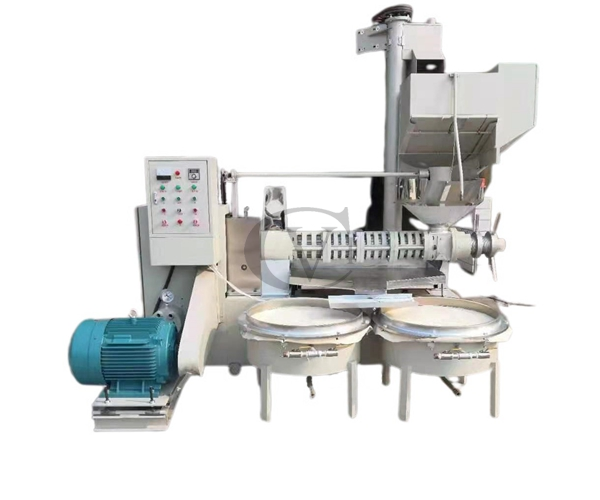

6YL-RL Oil Press with Auto Loader
6YL-RL Oil Press with Auto Loader
  • Application:

    1.    This machine is upgrade type based on traditional type screw oil press, it’s combined with raw materials auto feed-in hopper, cake outlet, double vacuum filter and control box;

    2.    It is widely used to press rapeseeds, cottonseeds, soybean, peanut, sesame, teaseeds, sunflowerseeds, palm kernel, etc.

    3.    Choose rods type pressing rods, which is with higher pressure in pressing chamber, higher oil extraction rate, and lower oil slags rate;

    4.    Both hot press and cold press are available to meet different user;

    5.    Pressing screw, rods, pressing shaft etc core parts all through carburization and hardening, so that with high wear-resistance;

    6.    With loading conveyor which can load materials automatically and save labor

    7.    Match with vacuum filtering system, which can realize pressing and filtering same time.

Enquiry Now
  • Main data:


    Model

    6YL-125RL

    6YL-135RL

    6YL-150RL

    6YL-168RL

    6YL-208RL

    Capacity

    250-300kg/h

    300-400kg/h

    400-450kgs

    500-600kg/h

    700-800kg/h

    Machine Power

    15kw

    22kw

    22kw

    30kw

    37kw

    Vacuum pump

    1.1kw

    2.2kw

    2.2kw

    2.2kw

    2.2kw

    conveyor

    1.5kw

    1.5kw

    1.5kw

    1.5kw

    1.5kw

    Chamber

    2 sections

    3 sections

    3 sections

    3 sections

    3 sections

    Shaft speed

    100-120rpm

    100-120rpm

    100-120rpm

    100-120rpm

    100-120rpm

    Machine Size(mm)

    1750x1700x1550

    1850x1700x1600

    2000x1800x1800

    2500x1800x1800

    2700x2100x2000

    Total Weight

    1700kgs

    2000kgs

    2100kgs

    2400kgs

    2700kgs
