Advantage
1. Exact removal of impurities similar in size but different in weight to the desired product
2. Minimize product damage, fragmentation or degradation
3. Simple adjustment can remove different impurities
4. Automation reduces manual labor and improves efficiency
Instruction

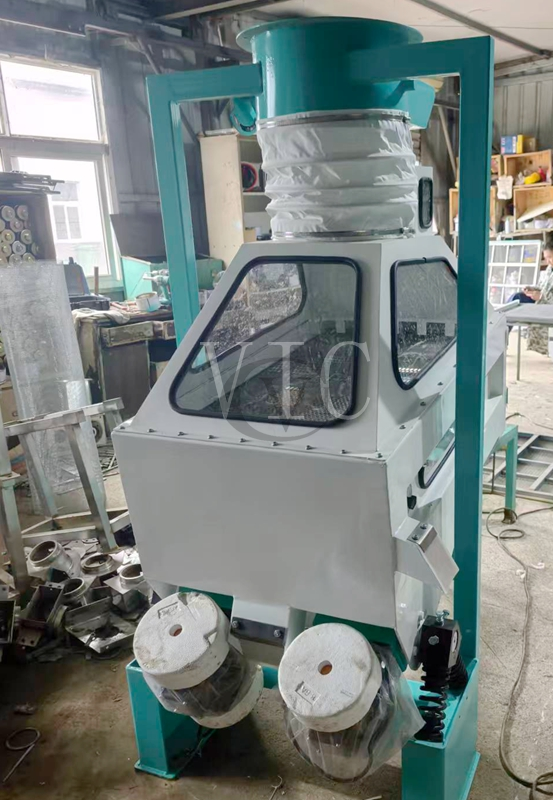

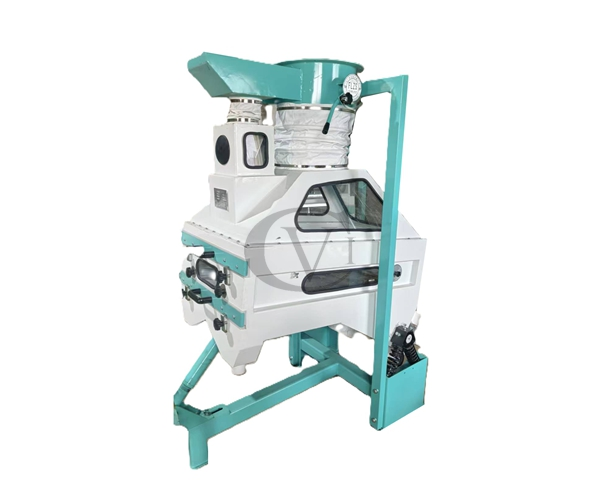

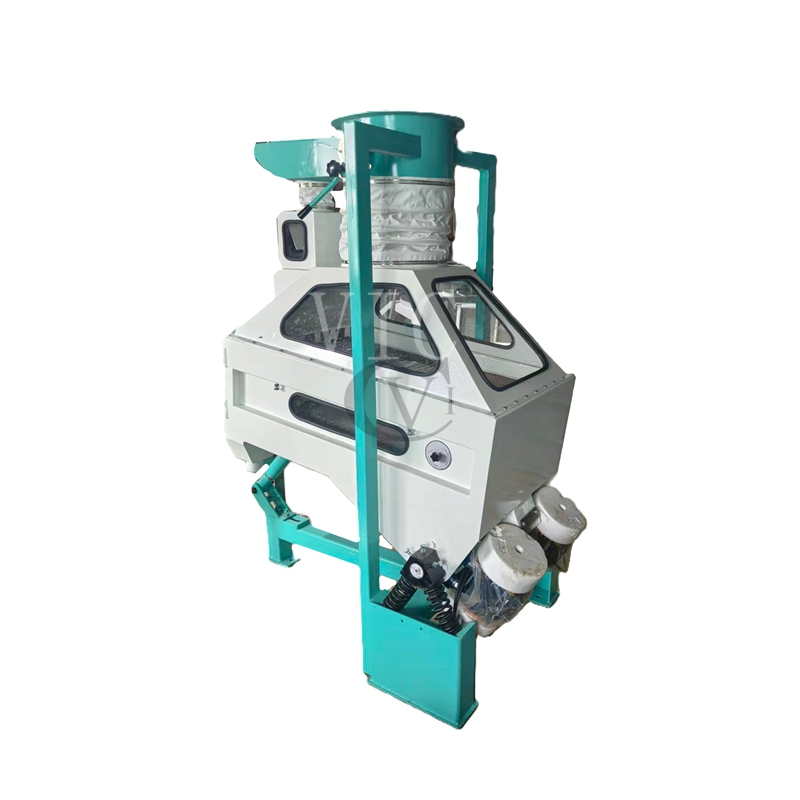

Gravity stoner is a separation equipment used to remove impurities from agricultural and food granular materials. Its main function is to separate materials of similar size but different specific gravity or density.
Stone removal machines are very effective at removing stones, mud balls, and other high density impurities from a wide range of commodities such as wheat, rice, corn, coffee beans, nuts, and beans.
Advantage
1. Exact removal of impurities similar in size but different in weight to the desired product
2. Minimize product damage, fragmentation or degradation
3. Simple adjustment can remove different impurities
4. Automation reduces manual labor and improves efficiency
Main data
| Model | Output (T / H) | Sieve amplitude (mm) | Vibration (r / Min) | Heavy sieve Angle (°) | Wind pressure (pa) | Suction (m³ / MIN) | Power (KW) | Weight (KG) | Dimensions |
| TQSF-80 | 3--4 | 4--6 | 940 | 5--9 | <980 | 145 | 0.25*2 | 340 | 1300*916*1800 |
| TQSF-100 | 6--9 | 4--6 | 940 | 5--9 | <980 | 160 | 0.25*2 | 400 | 1500*1160*1920 |
| TQSF-125 | 3--6 | 4--8 | 940 | 5--9 | <980 | 170 | 0.37*2 | 500 | 1470*1496*1920 |
| TQSF-150 | 3--7 | 4--9 | 940 | 5--9 | <980 | 200 | 0.55*2 | 600 | 1200*1476*1920 |
| TQSF-175 | 3--8 | 4--10 | 940 | 5--9 | <980 | 250 | 0.55*2 | 750 | 1200*1990*1920 |
