Rotary Drum Dryer
Rotary Drum Dryer
  • Introduction:

    This rotary drum dryer is widely used to dry powder, pellets, sawdust and other wood materials. Different material will have different capacity, but the capacity can not influence the drying quality; Simple structure, little malfunction, convenient operation, low maintenance cost;

    The machine can be changed according to the nature of the different materials, so that the material inside the dryer drum can form a stable full cut curtain fabric, quality heat exchange is more fully;

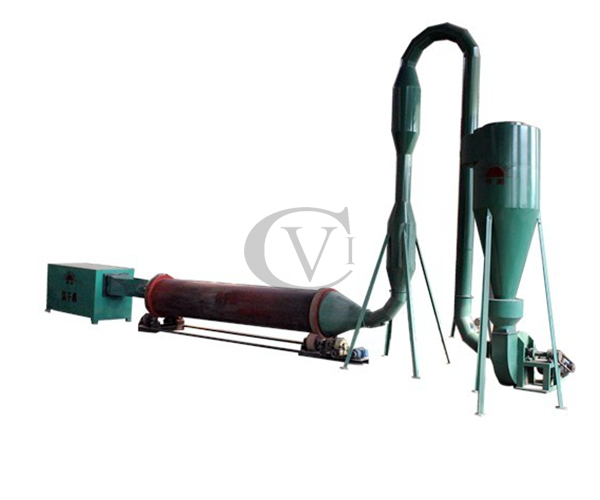

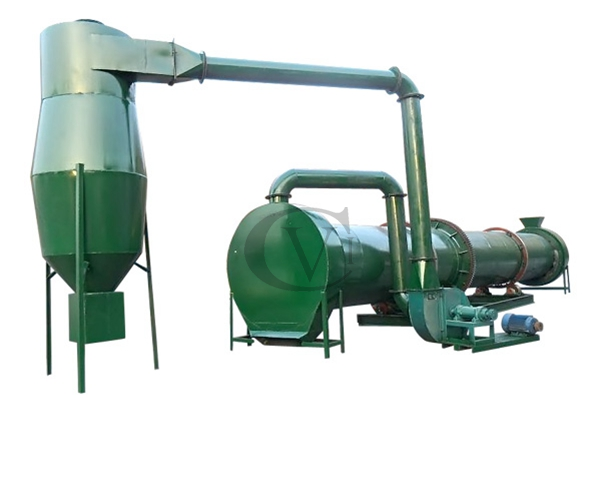

    Function of the parts of the dryer:

    Hot furnace: provide the hot air for the roller drum, which can dry the material continuously.

    Roller drum: the most important of the dryer, the material will be dried inside the roller through the hot air;

    Cyclone discharge: it can discharge the finished products to outside, and decrease the pollution.

Enquiry Now
  • Main data:


    Model

    GT-600

    GT-800

    GT-1000

    GT-1500

    Drum diameter

    Φ620mm

    Φ800mm

    Φ1000mm

    Φ1500mm

    Drum length

    1100mm

    1100mm

    1100mm

    1100mm

    Rotate speed

    3.2r/m

    3.2r/m

    3.2r/m

    3.2r/m

    Capacity

    400-600kg/h

    600-800kg/h

    800-1000kg/h

    1500-2000kg/h

    Power

    4kw+4kw

    4+5.5kw

    5.5+5.5kw

    11+5.5kw

    Gradient

    3-5°

    3-5°

    3-5°

    3-5°

    Installation size

    13mx1.2x3.3m

    13x1.2x3.3m

    13x2.5x3.3m

    15x2.5x3.3m

    Weight

    1.5Ton

    3.5Ton

    6Ton

    9Ton
