Introduction:

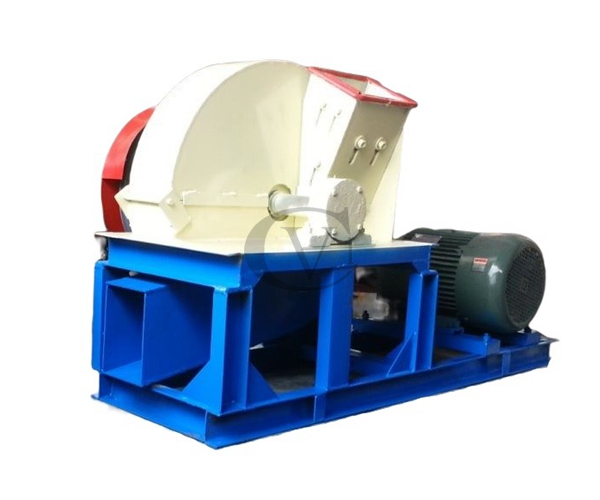

1.Wood
shaving machines can make the logs, tree branch, edge processed wood into wood
shavings.
2.They
are mainly used as the bed of the horse or chicken or other animals by farm or
horse club, animals’ farms.
3.
The wood shaving size and thickness can be adjusted according to your need;
4.
Can be driven by motor or diesel engine.
Main
data:
|
Model |
9BH-420 |
9BH-600 |
9BH-800 |
9BH-1000 |
9BH-1500 |
|
Motor |
7.5
KW |
15kw |
30
KW |
55kw |
75kw |
|
Voltage |
380V |
380v |
380V |
380v |
380v |
|
Capacity |
300kg/h |
500kg/h |
1000kg/h |
1500kgs/h |
2000kg/h |
|
Blade
quantity |
4PCS |
4pcs |
8PCS |
9PCS |
12PCS |
|
Cutter
diameter |
420
mm |
610mm |
750
mm |
1000mm |
1150
mm |
|
Size
of blade(mm) |
90x60x8 |
150x70x8 |
150×100×10 |
150x120x10 |
150×120×10 |
|
Size
of feeding inlet(mm) |
140×100 |
190x150 |
190×220 |
220x300 |
330×420 |
|
Outer
dimension(mm) |
1200x500x700 |
1550x630x950 |
1850×800×
1100 |
2400x1000x1400 |
3000×1200×
1900 |
|
Weight(kg) |
250 |
500 |
700 |
1200kgs |
1800kgs |
