1.Simple and easy operation,one key to start without other operating
2.High oil yield to the max highest 97%
3.Reliable transmission systems are mostly helical gears with greater torque
4. Pure copper motors are more powerful and less failure rate
5. Reasonable design and configuration of strip and round row ensure faster oil output and higher oil yield
6. Stainless steel oil guide plate and cover is cleaner and more sanitary
7 Advanced automatic stirring forced feeding system ensures the uniformity and continuity of feeding
8.Convenient and labor-saving adjustment and disassembly system facilitates product adjustment and maintenance

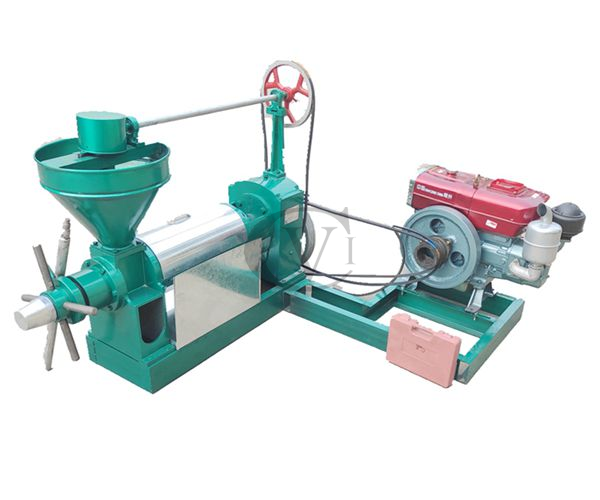

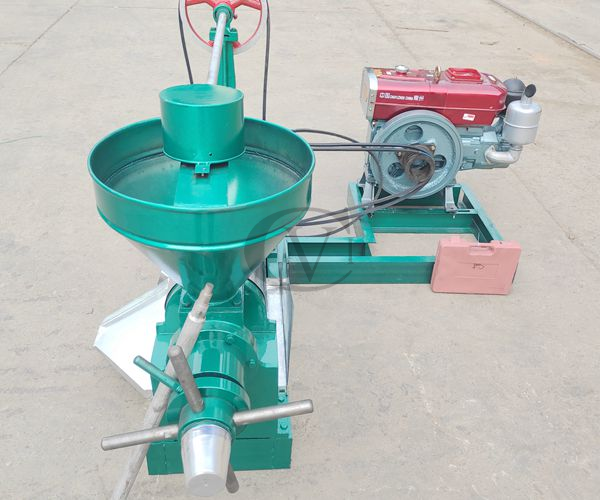

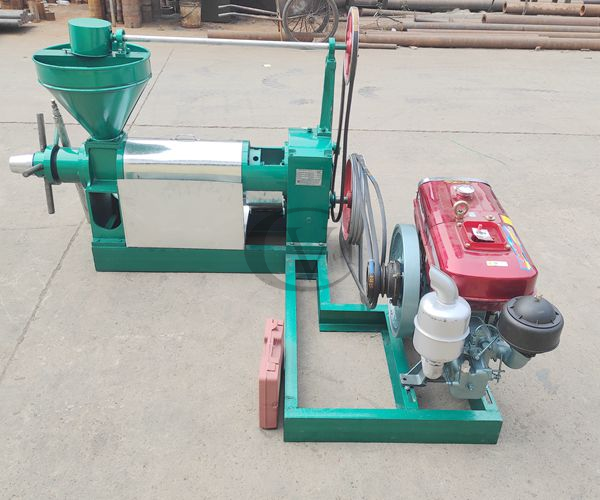

9.Diesel engine driven scew oil press machine without electricity and is not limited by the site.
Feature:
1.Advantage:easy operation, simple structure, low voice and high output.
2.New type:this screw machine is a rather advanced machinery in oil processing machinery.
3.Best choice: for small and mediumsized sized oil extraction workshops or individual households
4.Function:both hot press and cold press can be available.
Main data:
Model | Capacity(kg/h) | Power(kw) | Machine Size(mm) | Weight(kg) |
6YL-68 | 50kg/h | 5.5kw | 930x490x820 | 150kg |
6YL-68C | 50kg/h | 5.5kw | 930x575x1055 | 150kg |
6YL-68E | 50kg/h | 10HP | 930x575x1055 | 180kg |
6YL-80 | 100kg/h | 5.5kw | 1307x550x1102 | 300kg |
6YL-95 | 200kg/h | 7.5-11kw | 2155x580x1250 | 550kg |
6YL-100 | 200kg/h | 7.5-11kw | 2050x550x1180 | 550kg |
6YL-100E | 6YL-100 | 15HP | 2050x550x1180 | 600kg |
6YL-120 | 300kg/h | 11-15kw | 2150x610x1300 | 700kg |
6YL-130 | 450kg/h | 15-18.5kw | 2180x610x1480 | 800kg |
6YL-160 | 550kg/h | 18.5-22kw | 2180x610x1480 | 900kg |
6YL-165 | 700kg/h | 22-30kw | 2280x620x1680 | 1300kg |
